REMOTE CONTROL AND CRADLE CONSTRUCTION/OPERATION
id092000106300
• The remote control and cradle are located on the console.
• The buttons and joystick for controlling car-navigation are located on the top side of the remote control. The infrared transmitter sends signals through a terminal on the front and back of the remote control.
• An infrared sensor that receives signals from the remote control is located on the cradle. The received signals are sent to the LCD unit.
• The remote control uses the batteries as a power source when not in the cradle and uses the power supply connector when set in the cradle. (Ignition switch at ACC or ON position)
-
Note
-
• The batteries are not charged when the remote control is in the cradle.
.
|

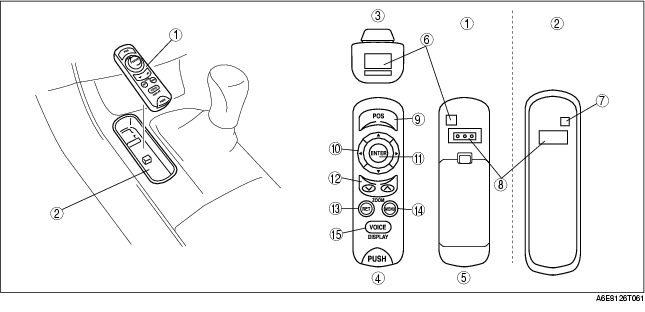

1
|
Remote control
|
|
2
|
Cradle
|
|
3
|
Front view
|
|
4
|
Top view
|
|
5
|
Underside view
|
|
6
|
Infrared transmitter
|
|
7
|
Infrared sensor
|
|
8
|
Power supply connector
|
|
No.
|
Button (component)
|
Function
|
|
9
|
[POS (Position)] button
|
Displays the current position.
|
|
10
|
Joystick
|
Selects items by tilting it up, down, right and left.
|
|
11
|
[ENTER] button
|
Executes a selected item.
|
|
12
|
[ZOOM] button
|
Changes the map scale.
|
|
13
|
[RET] button
|
Returns to the previous screen.
|
|
14
|
[MENU] button
|
Select a menu.
|
|
15
|
[VOICE] button
|
Initiates vocal guidance for route maneuvers.
|
