NOISE FILTER REMOVAL/INSTALLATION [4SD]

id092000806402

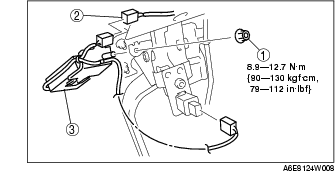

Brake Light Noise Filter

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

1
Nut
2
Connector
3
Noise filter

3. Install in the reverse order of removal.

Rear Window Defroster Noise Filter

1. Disconnect the negative battery cable.

2. Remove the rear package trim.

3. Remove in the order indicated in the table.

1
Bolt
2
Connector
3
Noise filter

4. Install in the reverse order of removal.
