FUEL GAUGE CONTROL CONSTRUCTION/OPERATION
id092200100700

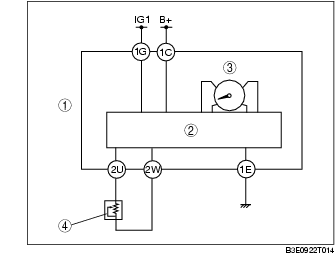

System Wiring Diagram
|
1
|
Instrument cluster
|
|
2
|
Microcomputer
|
|
3
|
Fuel gauge
|
|
4
|
Fuel gauge sender unit
|
Operation
• A resistance according to fuel level is sent from the fuel gauge sender unit to the microcomputer. The microcomputer calculates the average resistance within a specified time, and sends the output signal to the fuel gauge based on the calculated value.
