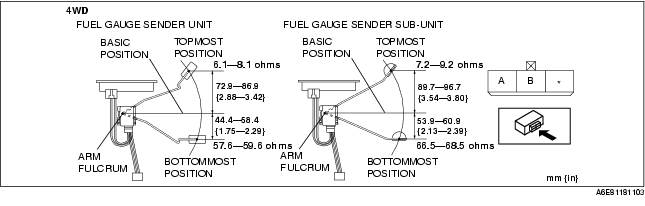

1. Move the float to the topmost and bottommost positions, and verify that the resistance between terminals A and B of the unit and the position of the float are as indicated in the figure.
• If they are not as indicated, replace the fuel gauge sender unit.
