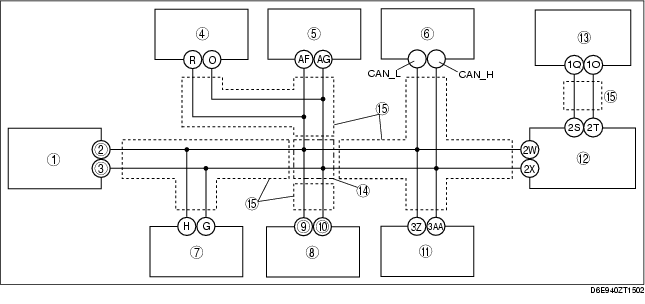

CAN SYSTEM WIRING DIAGRAM


1	PCM
2	2R (except MZR-CD (RF Turbo))
2	39 (MZR-CD (RF Turbo))
3	2U (except MZR-CD (RF Turbo))
3	13 (MZR-CD (RF Turbo))
4	ABS (ABS/TCS) HU/CM (with ABS (ABS/TCS))
5	DSC HU/CM (with DSC)
6	Data link connector-2
7	4WD control module (4WD)
8	TCM
9	2M (JA5AX-EL)
9	2X (FS5A-EL)
10	2J (JA5AX-EL)
10	2W (FS5A-EL)
11	Keyless control module (advanced keyless system)
12	Instrument cluster
13	Audio unit
14	BCM
15	Twisted pair
