BAND SERVO DISASSEMBLY/ASSEMBLY

id051700116200

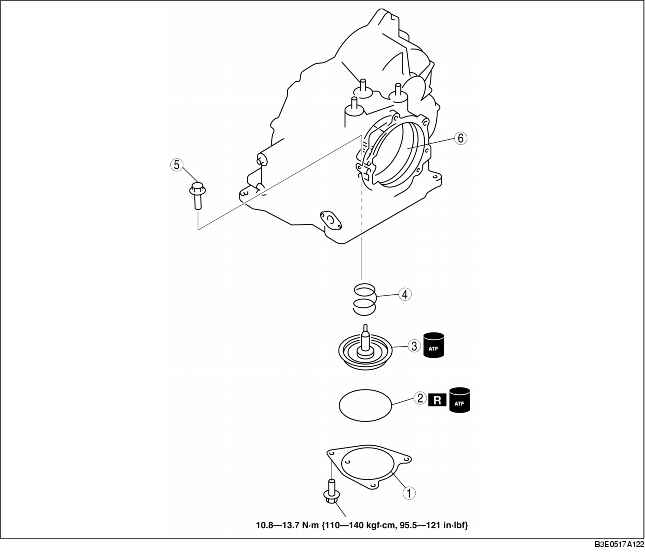

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

1
Servo retainer
2
O-ring
3
Servo piston
4
Servo return spring
5
Band strut
6
2-4 brake band

Assembly Procedure

1. Measure the spring free length.

Specification

Outer diameter mm {in}

Free length mm {in}

No. of coils

Wire diameter

mm {in}

34.0 {1.340}
36.4 {1.430}
2.5
4.0 {0.160}

• If not as specified, replace the spring.

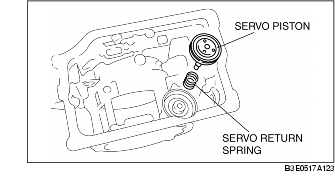

2. Install the servo return spring to the transaxle case.

3. Install the servo piston to the transaxle case.

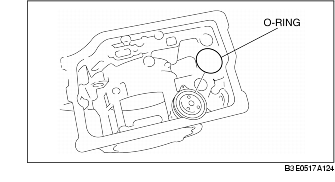

4. Apply ATF to new O-ring and install it to the transaxle case.

O-ring inner diameter
70.2 mm {2.76 in}

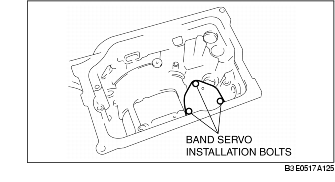

5. Install the servo retainer by tightening the bolts evenly and gradually.

Tightening torque
10.8-13.7 N·m
{110-140 kgf·cm, 95.5-121 in·lbf}
