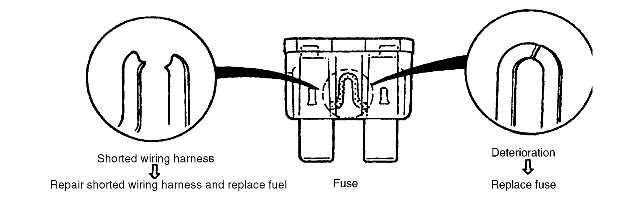

Damaged fuse
|
Related wiring harness
|
|
MAIN
|
• IG KEY2 fuse
• AD FAN fuse
• FAN fuse
|
|
ENG +B
|
• PCM
|
|
IG KEY1
|
• Ignition switch
-
- ENGINE IG fuse
-
- METER IG fuse
|
|
IG KEY2
|
• Ignition switch
|
|
AD FAN
|
• Cooling fan relay
-
- Cooling fan motor
|
|
FAN
|
• Cooling fan relay (L8-DE, LF-DE (except G.C.C. specs.)
-
- Cooling fan motor
|
|
ENGINE IG
|
• Main relay
-
- PCM
• Ignition coil
• Condenser
|
|
METER IG
|
• Cooling fan relay
-
- PCM
|
|
ENG BAR
|
• VSS (ATX)
• OCV
• VIS solenoid valve
• VAD control solenoid valve
• Purge solenoid valve
• EGR valve
• MAF/IAT sensor
|
|
ENG BAR2
|
• Heated oxygen sensor heater
|
|
INJ
|
• PCM
• Fuel pump relay
-
- PCM
• Fuel injector
|
|
FUEL PUMP
|
• Fuel pump relay
-
- Fuel pump
|
