CYLINDER HEAD COVER CONSTRUCTION [LF, L3]

id0110001002a2

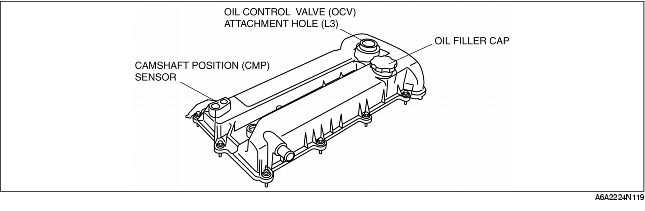

• The cylinder head cover is made of integrated aluminum alloy, which is lightweight and sound absorbent.

• The oil filler cap is a screw-in type. The boss for installing the camshaft position (CMP) sensor is provided at the rear of the cylinder head cover.

• L3 engine model has a hole for installing the oil control valve (OCV).
