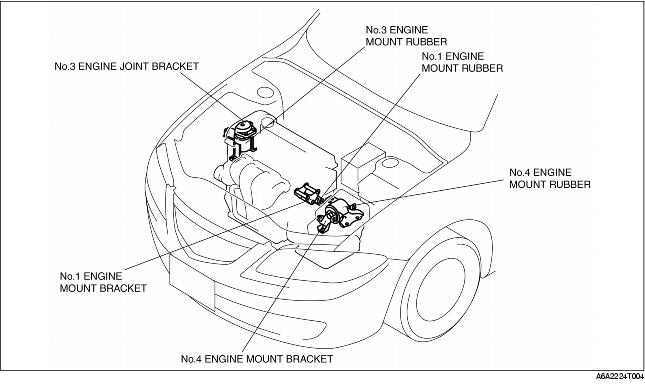

ENGINE MOUNT OUTLINE [LF, L3]

id0110001014a2

• The pendulum-type layout of the engine mounting reduces noise in the cabin.

• The engine is supported at three points, and simplification of engine mount components has been attained.

• An oil-filled No.3 engine mounting rubber has been adopted to reduce noise in the cabin.

• The surface of the No.3 engine joint bracket and No.1 engine-mounting rubber is made of aluminum alloy to decrease weight.
