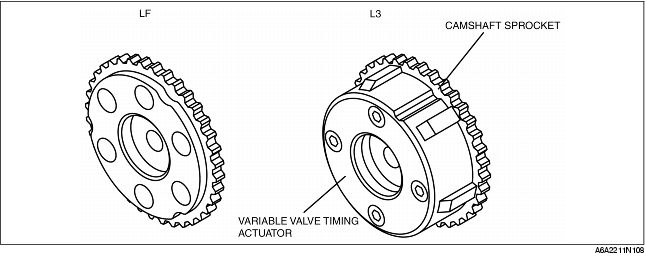

CAMSHAFT SPROCKET CONSTRUCTION [LF, L3]

id0110001021a2

• Highly rigid sintered alloy has been adopted for the camshaft sprocket and is quenched to improve abrasion resistance at the contact point with the timing chain.

• L3 engine model intake port side camshaft sprocket is integrated (cannot be disassembled) with the variable valve timing actuator.
