DRIVE BELT CONSTRUCTION [LF, L3]

id0110001025a2

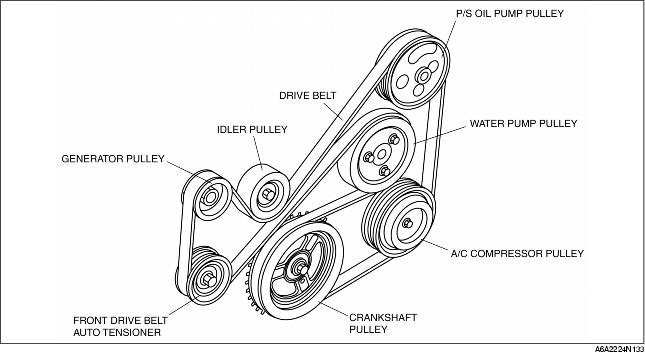

• A serpentine-type drive belt with a V-ribbed belt to drive the supplemental units has been adopted. This shortens the engine length and improves serviceability.

• A front drive belt auto tensioner with an embedded coil spring has been adopted to automatically maintain the optimal drive belt tension.

Drive belt specification


ITEM		LF	L3
Belt length size	(mm {in})	Approx. 2,255 {88.78} (Approx. 2,160 {85.04})	Approx. 2,305 {90.75} (Approx. 2,210 {87.01})
Belt width size	(mm {in})	Approx. 20.5 {0.81}

( ): A/C non-equipped vehicles.
