CRANKSHAFT SPROCKET CONSTRUCTION [LF, L3]

id0110001204a2

• High-strength chromium steel has been adopted for the crankshaft sprocket. Due to carburizing protection, abrasion resistance at all chain contact points is increased.

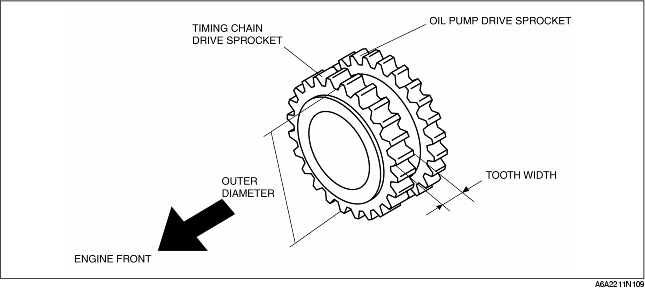

• The crankshaft sprocket consists of the timing chain sprocket and oil pump sprocket, which are integrated into a single unit.

• The keyway on the crankshaft sprocket, used to position the crankshaft during installation, has been eliminated.

Timing drive sprocket specifications


ITEM		LF	L3
Outer diameter	(mm {in})	Approx. 47.955 {1.8880}	Approx. 48.495 {1.9093}
Tooth width	(mm {in})	Approx. 7.35 {0.289}	Approx. 8.03 {0.316}

Oil pump drive sprocket specifications


ITEM		LF	L3
Outer diameter	(mm {in})	Approx. 47.955 {1.8880}	Approx. 48.495 {1.9093}
Tooth width	(mm {in})	Approx. 6.15 {0.242}	Approx. 5.93 {0.242}
