DRIVE BELT INSPECTION [LF, L3]

Note

• Drive belt deflection/tension inspection is not necessary because of the use of the drive belt auto tensioner.

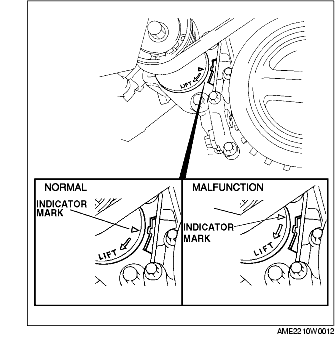

1. Verify that the drive belt auto tensioner indicator mark does not exceed the limit.

• If it exceeds the limit, replace the drive belt. (See DRIVE BELT REPLACEMENT [LF, L3].)
