DRIVE BELT AUTO TENSIONER INSPECTION [LF, L3]

1. Remove the drive belt. (See DRIVE BELT REPLACEMENT [LF, L3].)

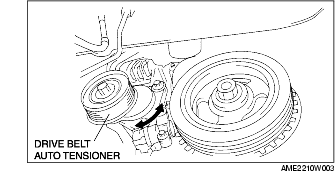

2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.

• Replace the drive belt auto tensioner if necessary.

19-25 N·m {2.0-2.5 kgf·m, 15-18 ft·lbf}

3. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

• Replace the drive belt auto tensioner if necessary.

19-25 N·m {2.0-2.5 kgf·m, 15-18 ft·lbf}

4. Install the drive belt. (See DRIVE BELT REPLACEMENT [LF, L3].)
