OIL FILTER CONSTRUCTION [LF, L3]
id0111001008b5

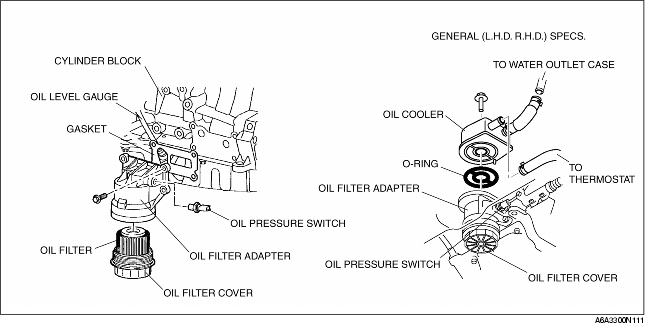

• The oil filter is attached to the right side of the oil level gauge (oil pan side) on cylinder block.
• An oil filter adapter has been adopted for weight reduction. The oil pressure switch is installed on the oil filter adapter.

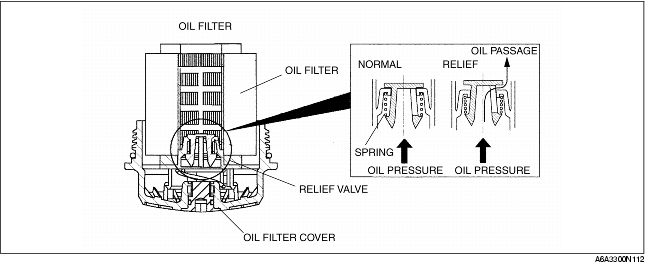

• A resin oil filter has been adopted for weight reduction. A drain plug has been installed on the bottom of the oil filter to improve replacement serviceability.
• An environment-friendly oil filter made of incinerable polyester has been adopted. Only the filter paper needs to be replaced.
• A water-cooled oil cooler has been adopted to reduce the engine oil degradation. Also, an exclusive use oil filter adapter has been adopted for the oil cooler. (General (L.H.D. R.H.D.) specs.)
Oil filter specification
|
ITEM
|
LF
|
L3
|
|
Outer diameter
|
(mm {in})
|
67-69 {2.4-2.7}
|
65.2-65.8 {2.57-2.59}
|
|
Height
|
(mm {in})
|
73.5-75.5 {2.89-2.97}
|
72.6-74.4 {2.86-2.92}
|
