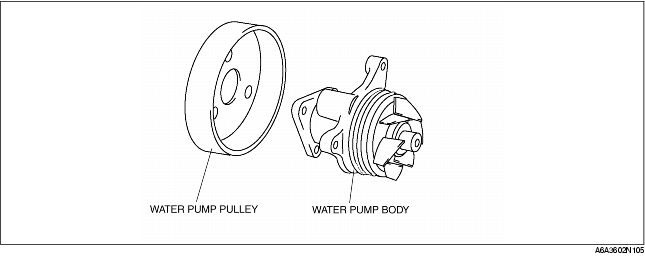

WATER PUMP CONSTRUCTION [LF, L3]

id0112001411b5

• The water pump body is made of aluminum alloy for weight reduction.

• The impeller is built into the cylinder block and the water pump is not serviceable and must be replaced as a unit if faulty.

• The water pump is driven by the front drive belt. (serpentine type)
