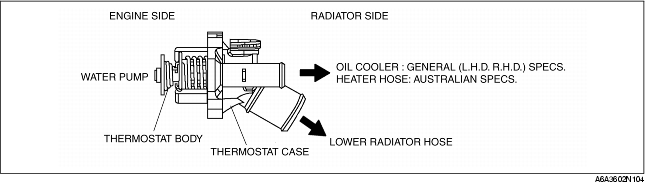

THERMOSTAT CONSTRUCTION [LF, L3]
id0112001413b5
• A wax-type thermostat with a jiggle-pin has been adopted.
• The plastic thermostat case has a built-in stainless steel thermostat body with excellent corrosion resistance.
• When the engine coolant temperature is below 75°C {167°F}, the thermostat stops the circulation of radiator coolant from the radiator for improved engine warming performance. When the engine coolant temperature is between 80 °C {176 °F} to 84 °C {183 °F}, the thermostat begins opening the valve and engine coolant flows from the radiator to stabilize engine coolant temperature.
