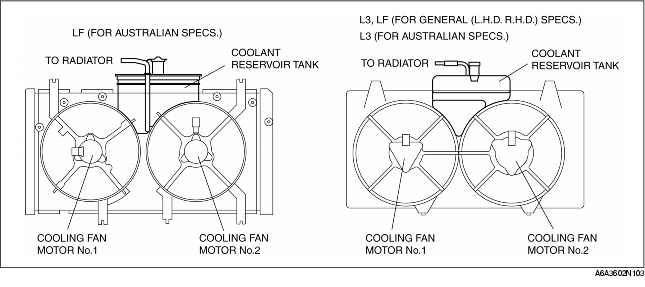

RADIATOR COWLING, COOLANT RESERVOIR TANK CONSTRUCTION [LF, L3]

id0112001418b5

• The radiator cowling is made of plastic for weight reduction.

• The coolant reservoir tank can be removed from the radiator cowling. (L3 engine model (for Australian specs.), General (L.H.D. R.H.D.) specs.)

• The coolant reservoir tank cannot be removed from the radiator cowling. (LF engine model (for Australian specs.))
