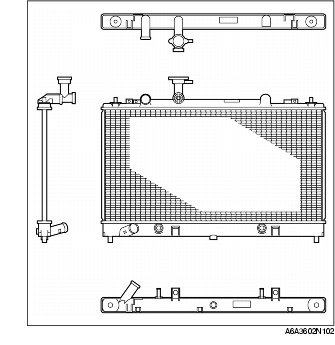

RADIATOR CONSTRUCTION [LF, L3]

id0112001420b5

• A cross-flow radiator with corrugated fins is used to improve cooling performance.

• The radiator tanks are made of plastic and the core is made of aluminum.

• Four rubber-insulated mounting brackets are utilized to decrease vibration.

• The radiator has an ATF cooler on the under side. (ATX)

• A low-pressure type cap has been adopted for the radiator cap.
