COOLING FAN MOTOR INSPECTION [LF, L3]

1. Verify that the battery is fully charged.

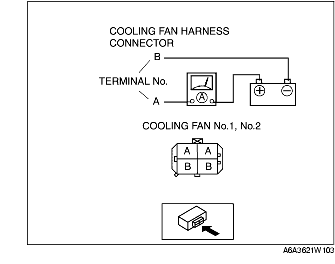

2. Connect battery positive voltage and an ammeter to the fan motor connector.

3. Verify that the fan motor operates smoothly at the standard current draw.

Australian specs.

General (L.H.D. R.H.D.) specs.

• If not as specified, replace the fan motor.

Cooling fan motor current [LF (Australian specs.)]

Cooling fan motor No.1: 6.6 A

Cooling fan motor No.2: 6.6 A

Cooling fan motor current [L3 (Australian specs.)]

Cooling fan motor No.1: 5.9 A

Cooling fan motor No.2: 8-10 A

Cooling fan motor current [LF, L3 (General (L.H.D. R.H.D.) specs.)]

Cooling fan motor No.1: 10 A

Cooling fan motor No.2: 10 A
