COOLING FAN MOTOR REMOVAL/INSTALLATION [LF, L3]
id0112008019b5
1. Remove the cooling fan. (See COOLING FAN REMOVAL/INSTALLATION [LF, L3].)

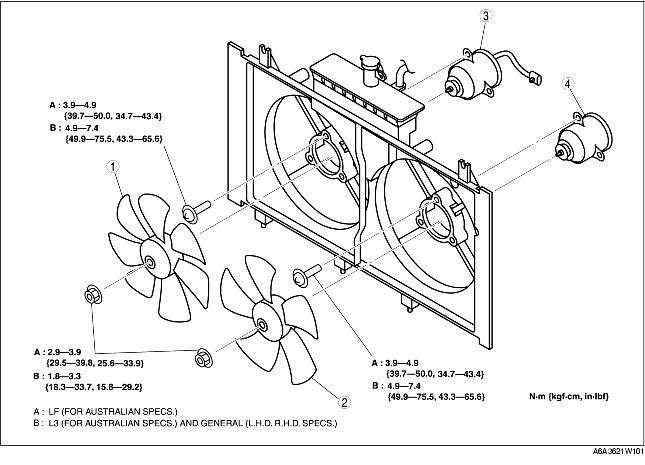

2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
|
1
|
Cooling fan No.2
(Fan blade LF (for Australian specs): 7, L3 (for Australian specs.), General (L.H.D. R.H.D.)specs: 5)
|
|
2
|
Cooling fan No.1
(Fan blade LF (for Australian specs): 5, L3 (for Australian specs.), General (L.H.D. R.H.D.)specs: 7)
|
|
3
|
Cooling fan motor No.2
|
|
4
|
Cooling fan motor No.1
|
