ACCELERATOR CABLE INSPECTION/ADJUSTMENT [LF, L3]

1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [L3].)

2. Verify that the throttle valve is closed.

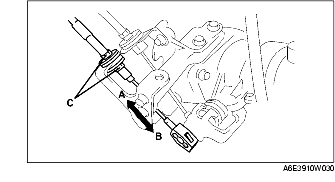

3. Pull the accelerator cable in the directions of A and B, and measure the free play.

• If not as specified, adjust by turning locknut C.

Free play

1.0-3.0 mm {0.04-0.11 in}

Tightening torque

9.8-14.7 N·m {100-150 kgf·cm, 87-130 in·lbf}
