FUEL PUMP UNIT DESCRIPTION [LF, L3]

id0114001015a4

Function

• Adopted as a part of the mechanical returnless fuel system.

• The fuel pump unit, except for the fuel gauge sender unit, is integrated to ensure mechanical integrity.

• To prevent decreased engine output from a lack of fuel supply when the vehicle is turning, the fuel pump has been designed so that the fuel supply always remains constant in the fuel reservoir cup.

• Fuel stored in the fuel reservoir cup is supplied from two lines: the check valve (one-way) and the jet pump.

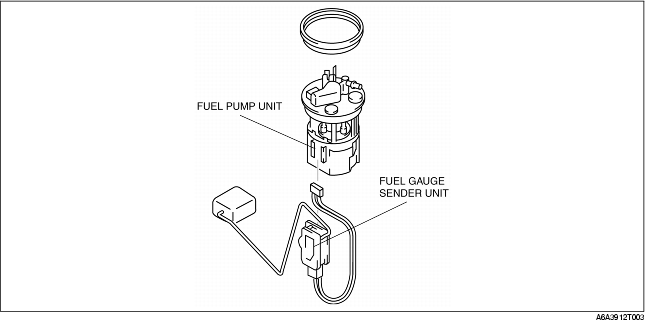

Structure

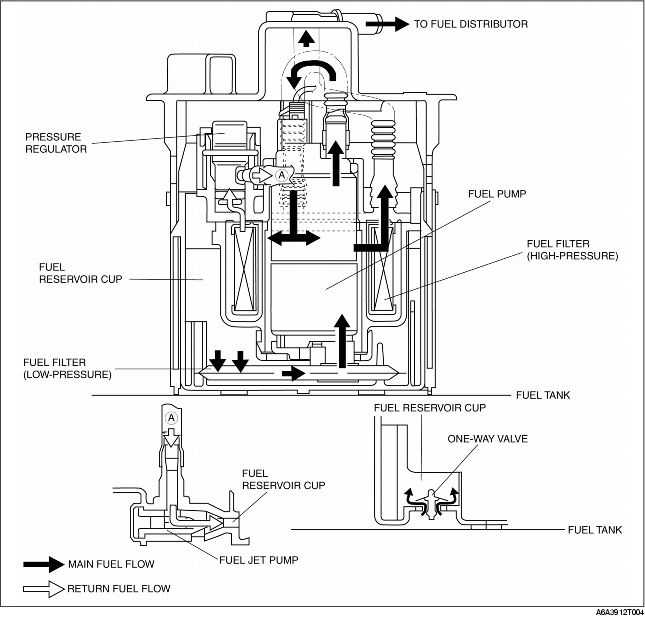

Fuel flow
