GENERATOR CONSTRUCTION [LF, L3]

id0117001023a4

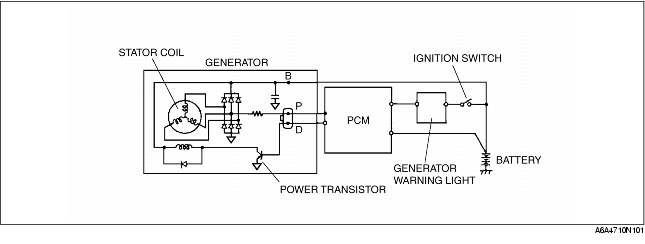

• The voltage regulator has been eliminated, and generator control is carried out by the PCM.

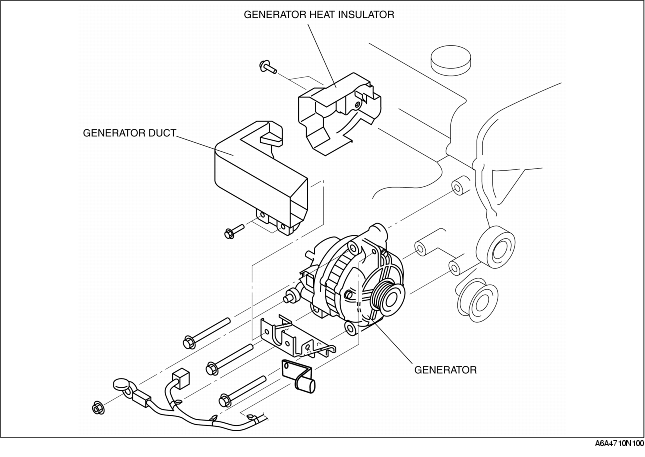

• A generator duct made of plastic and generator heat insulator made of iron have been adopted to protect the generator from the exhaust manifold heat.
