IGNITION COIL CONSTRUCTION [LF, L3]
id0118001453a5

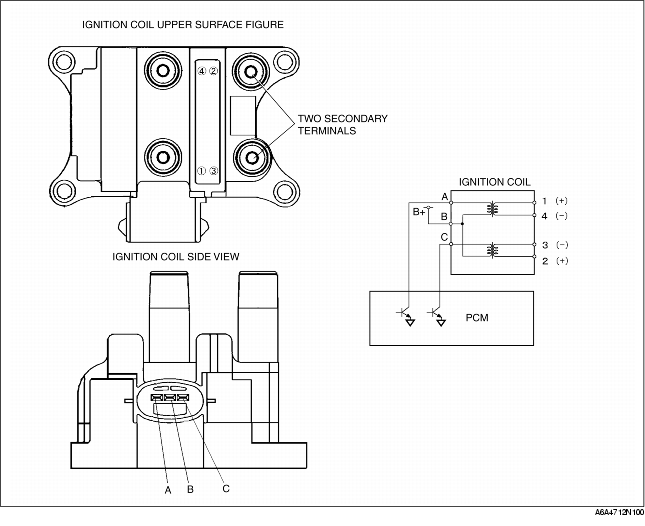

• The ignition coil contains two coils. They are for cylinder numbers 1 and 4, and cylinder numbers 2 and 3 respective. (Matched pairs)
• The two secondary terminals contain the secondary coils positive and negative terminals. The closed circuit of secondary coils is formed through the high-tension leads, two spark plugs and the cylinder head. Due to this, one coil ignites two cylinders simultaneously.
• Firing timing of the coil is controlled by the PCM due to a built-in ignition system.
Terminal layout
|
Terminal
|
Signal
|
|
3 terminals
|
A
|
Ignition coil control signal 2 (No.1, No.4)
|
|
B
|
Power supply
|
|
C
|
Ignition coil control signal 1 (No.2, No.3)
|
