IGNITION COIL REMOVAL/INSTALLATION [LF, L3]


id0118008002a5

1. Disconnect the negative battery cable.

2. Remove the plug hole plate. (L3 engine model)

(See PLUG HOLE PLATE REMOVAL/INSTALLATION [L3].)

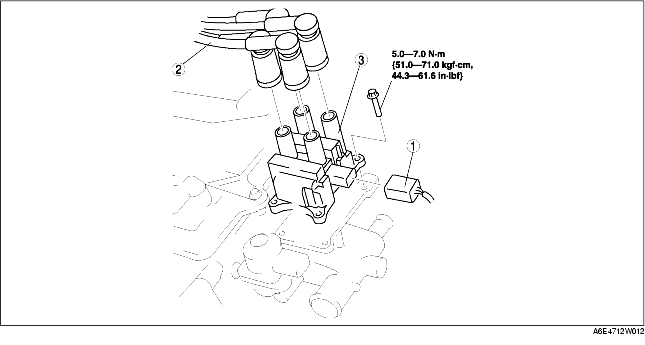

3. Remove in the order indicated in the table.

4. Install in the reverse order of removal.

1
Connecter
2
High-tension lead
3
Ignition coil
