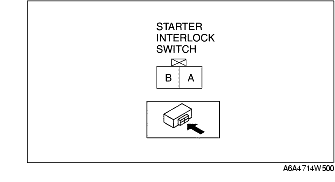

STARTER INTERLOCK SWITCH INSPECTION [LF FOR GENERAL (L.H.D.) SPECS. (MTX)]

id0119001042c0

1. Disconnect the negative battery cable.

2. Disconnect the starter interlock switch connector.

3. Inspect for continuity between terminals of the starter interlock switch using an ohmmeter.

• If not as specified, replace the starter interlock switch.


Terminal	Condition
Terminal	Clutch pedal not depressed	Clutch pedal depressed
A to B	No continuity	Continuity
