CRANKSHAFT POSITION (CKP) SENSOR [LF, L3]

id0140001047a6

Outline

• For detecting the crankshaft angle, the CKP sensor detects pulsation signals from pulse wheel.

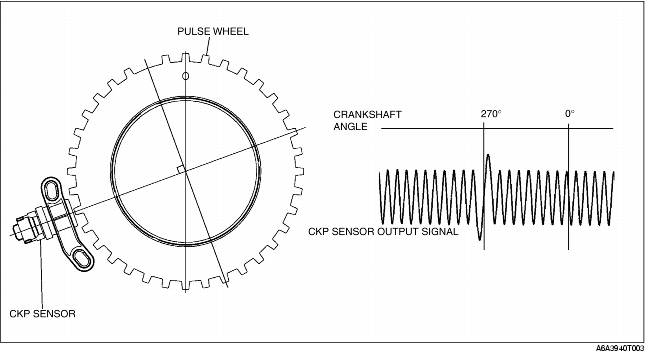

• The wave form of CKP sensor output is shown in the figure.
