CAMSHAFT POSITION (CMP) SENSOR [LF, L3]

id0140001627a6

Outline

• For cylinder identification, the CMP sensor detects pulsation signals from projections on the inlet valve camshaft.

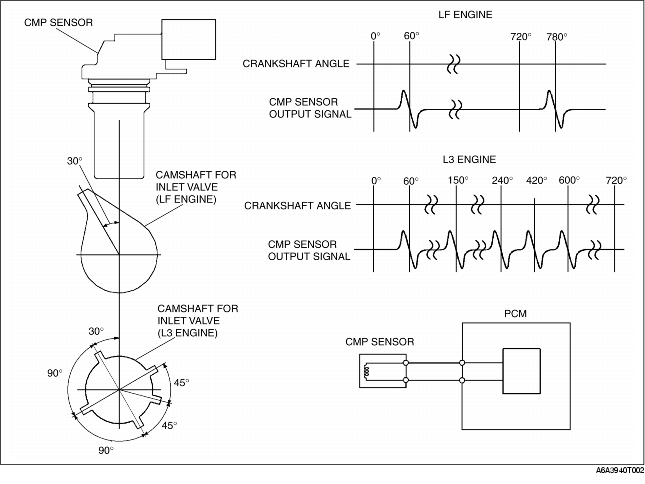

• The wave form of CMP sensor output is shown in the figure.
