PCM REMOVAL/INSTALLATION [LF, L3]

id0140008024a6

Note

•  When replacing the PCM, perform the following:

―  PCM configuration (See PCM CONFIGURATION [LF, L3].)

―  Immobilizer system-related part programming (See IMMOBILIZER SYSTEM REPROGRAM PROCEDURE.)

1.  Disconnect the negative battery cable.

2.  For R.H.D., perform the following procedures.

(1)  Remove the front side trim (left-side).

(2)  Partially peel back the flower covering.

3.  Remove in the order indicated in the table.

4.  Install in the reverse order of removal.

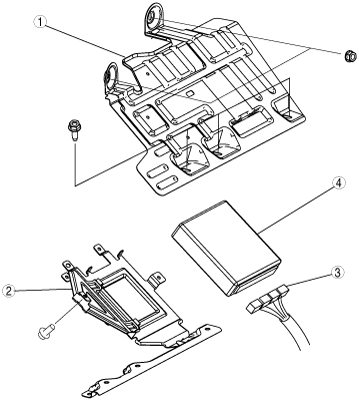

R.H.D.

am6zzw00011886

1	PCM cover No. 1
2	PCM cover No. 2
3	PCM connector
4	PCM

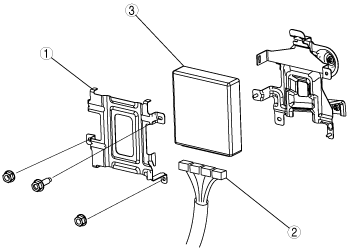

L.H.D.

am6zzw00011887

1	PCM cover
2	PCM connector
3	PCM
