DLC-2 CONSTRUCTION
id040200100600

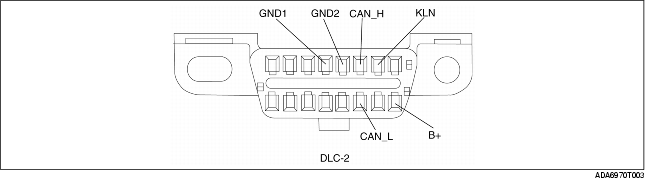

• The data link connector-2 (DLC-2) is composed of 16-pin connectors containing terminals KLN, CAN_H, CAN_L, +B, GND1, and GND2.
Terminal
Function
Remark
KLN
• Outputs DTC related to ABS HU/CM
• PID/DATA monitor and record function
• Active command modes function
WDS or equivalent communication line
CAN_H
CAN line (HI)
-
-
CAN_L
CAN line (LO)
-
-
GND1
Body ground
-
-
GND2
Ground for WDS or equivalent
-
-
B+
Battery positive voltage for WDS or equivalent
-
-
