DTC C1119 [ABS/TCS]
id040214874000
|
DTC
|
C1119
|

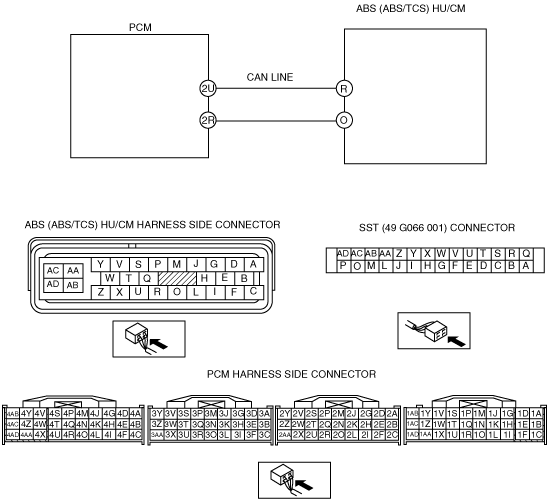

Engine control system, torque reduction inhibit signal line
|
|
|
DETECTION CONDITION
|
• Engine RPM information through CAN is out of specification or invalid value.
• Throttle information through CAN is out of specification or invalid value.
• Received control prohibition signal from PCM through CAN.
|
||
|
POSSIBLE CAUSE
|
• Malfunction of PCM
|
||
 |
|||
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
CHECK FOR PCM FOR DTCs
• Turn ignition key to OFF.
• Connect WDS or equivalent to DLC-2
• Turn ignition key to ON (engine OFF).
• Is DTC for engine control system obtained?
|
Yes
|
Go to the applicable DTC inspection.
(See DTC TABLE [LF, L3].)
|
|
No
|
Go to next step.
|
||
|
2
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear DTC from memory.
(See Clearing DTCs Procedures)
• Start engine.
• Is same DTC present?
|
Yes
|
Replace ABS (ABS/TCS) HU/CM, then go to next step.
|
|
No
|
Go to next step.
|
||
|
3
|
VERIFY AFTER REPAIR PROCEDURE
• Is there any other DTC present?
|
Yes
|
Go to applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
||
