SYSTEM WIRING DIAGRAM
id040300806400

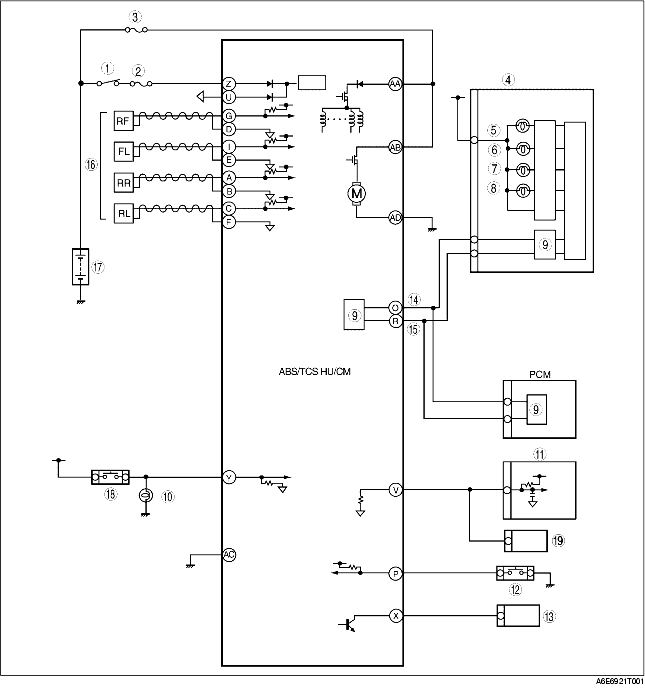

ABS (ABS/TCS)
1
IG switch
2
SUS 15 A fuse
3
ABS 60 A fuse
4
Meter
5
ABS warning light
6
Brake system warning light
7
TCS OFF light
8
TCS indicator light
9
CAN driver
10
Brake light
11
Cruise actuator
12
TCS OFF switch
13
DLC-2
14
CAN-H
15
CAN-L
16
ABS Wheel-speed sensor
17
Battery
18
Brake switch
19
Audio unit, Wiper and washer switch, Car-navigation unit, Auto leveling control unit

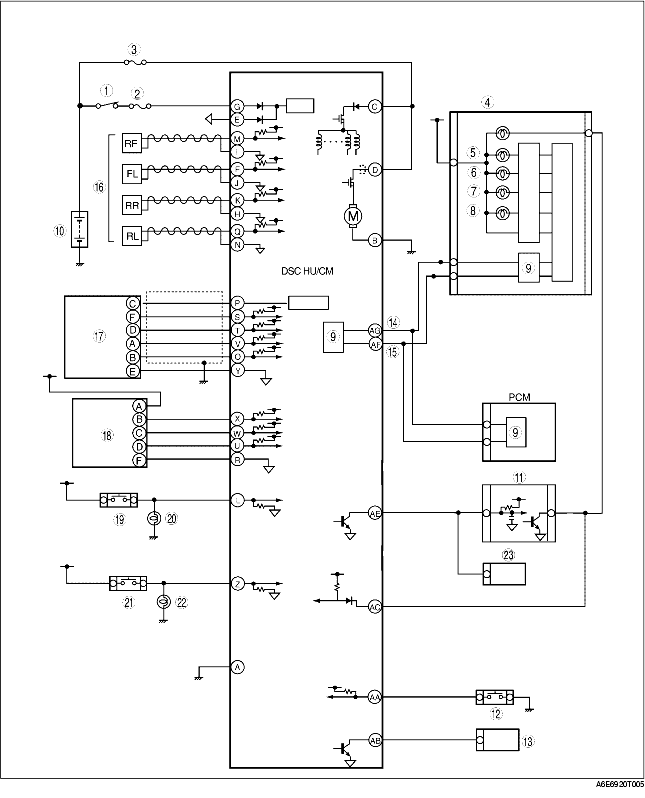

DSC
1
IG switch
2
SUS 15A fuse
3
ABS 60 A fuse
4
Meter
5
ABS warning light
6
Brake system warning light
7
DSC OFF light
8
DSC indicator light
9
CAN driver
10
Battery
11
Cruise actuator
12
DSC OFF switch
13
DLC-2
14
CAN-H
15
CAN-L
16
Wheel-speed sensor
17
Combine sensor
18
Steering angle sensor
19
Brake switch
20
Brake light
21
Back-up light switch (MTX only)
22
Back-up light
23
Audio unit, Wiper and washer switch, Car-navegation unit, Auto leveling control unit
