NO.2 NEITHER ABS WARNING LIGHT NOR BRAKE SYSTEM WARNING LIGHT ILLUMINATE WITH IGNITION SWITCH ON

id040300879100

2

Neither ABS warning light nor BRAKE system warning light illuminate with ignition switch on.

[TROUBLESHOOTING HINTS]

• Warning light circuit and indicator light circuits open

STEP

INSPECTION

ACTION

1
VERIFY WHETHER MALFUNCTION IS IN WARNING LIGHTS' COMMON POWER SUPPLY, OR OTHER WARNING LIGHTS AND INDICATOR LIGHTS
• Do other warning and indicator lights illuminate when IG switch is turned ON?
Yes
Replace instrument cluster (open circuit in instrument cluster).
No
Go to next step.
2
VERIFY WHETHER MALFUNCTION IS IN WARNING LIGHT' COMMON GROUND OR TURN SIGNAL INDICATOR LIGHT
• Turn ignition switch ON.
• Turn signal switch ON.
• Does turn signal indicator lights in instrument cluster illuminate?
Yes
Replace instrument cluster (open circuit in instrument cluster).
No
Go to next step.
3
VERIFY WHETHER MALFUNCTION IS IN WIRING HARNESS (BETWEEN INSTRUMENT CLUSTER AND GROUND FOR CONTINUITY OR INSTRUMENT CLUSTER
• Turn ignition switch to LOCK.
• Disconnect instrument cluster connector.

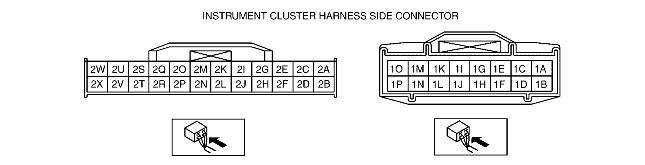

• Is there continuity between instrument cluster connector (24-pin) terminal 2E and ground?
Yes
Replace instrument cluster (open circuit in instrument cluster).
No
Repair wiring harness between instrument cluster and ground.
