STEP
|
INSPECTION
|
ACTION
|
|
1
|
INSPECT WIRING HARNESS BETWEEN ABS/TCS HU/CM AND DLC (DATA LINK CONNECTOR) FOR CONTINUITY AND SHORTS
Activate TRAC_OFF (TCS OFF light) using WDS or equivalent.
Is error message displayed regarding communication between ABS/TCS CM and WDS or equivalent?
|
Yes
|
If a communication error message is displayed even after inspecting according to procedures displayed on the WDS or equivalent, go to Step 6.
|
|
No
|
Go to next step.
|
|
2
|
CHECK TCS OFF LIGHT BULB FOR MALFUNCTIONS BY USING INSPECTION FUNCTION IN ABS/TCS HU/CM
Activate TRAC_OFF (TCS OFF light) using WDS or equivalent
Does TCS OFF light illuminate?
|
Yes
|
Replace ABS/TCS HU/CM (OFF light bulb malfunction inspection control incorrect in ABS/TCS HU/CM).
|
|
No
|
Go to next step.
|
|
*3
|
INSPECT TCS OFF LIGHT CIRCUIT IN INSTRUMENT CLUSTER
Remove instrument cluster.

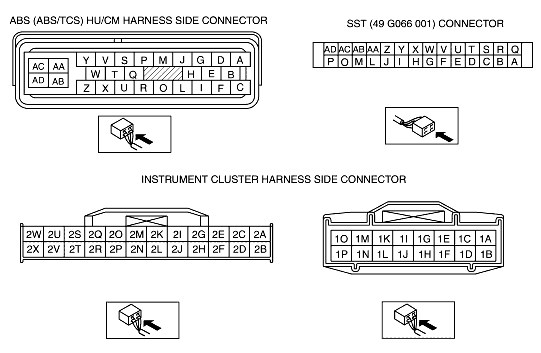

Connect instrument cluster (24-pin) terminal 2F to ground and connect all instrument cluster connectors.
Does TCS OFF light illuminate with ignition switch on?
|
Yes
|
Undo short and connect all instrument cluster connectors, then go to next step.
|
|
No
|
Replace instrument cluster (open circuit in instrument cluster).
|
|
*4
|
VERIFY WHETHER MALFUNCTION IS IN WIRING HARNESS (BETWEEN ABS/TCS CM AND INSTRUMENT CLUSTER FOR CONTINUITY) OR ABS/TCS HU/CM
Disconnect ABS/TCS HU/CM connector.
Connect the SST (49 G066 001) (vehicle harness side only).
Use the SST connector to ground TCS OFF light terminal O to body ground.
Does TCS OFF light illuminate with ignition switch on?
|
Yes
|
Replace ABS/TCS HU/CM (open circuit in ABS/TCS HU/CM).
|
|
No
|
Repair wiring harness between ABS/TCS HU/CM and instrument cluster.
|
|
*5
|
INSPECT WIRING HARNESS BETWEEN ABS/TCS CM AND DLC (DATA LINK CONNECTOR) FOR CONTINUITY
Is there continuity between SST connector terminal T and data link connector?
|
Yes
|
Go to next step.
|
|
No
|
Repair wiring harness between ABS/TCS HU/CM and data link connector.
|
|
*6
|
INSPECT WIRING HARNESS BETWEEN ABS/TCS HU/CM AND DLC (DATA LINK CONNECTOR) FOR SHORT TO B+
Is voltage approximately 12 V at SST connector terminal T?
|
Yes
|
Repair wiring harness between ABS/TCS HU/CM and data link connector.
|
|
No
|
Go to next step.
|
|
*7
|
INSPECT WIRING HARNESS BETWEEN ABS/TCS HU/CM AND DLC (DATA LINK CONNECTOR) FOR SHORT TO GROUND
If there continuity between SST connector terminal T and ground?
|
Yes
|
Repair wiring harness between ABS/TCS HU/CM and data link connector.
|
|
No
|
Replace ABS/TCS HU/CM (communication circuit malfunction in ABS/TCS HU/CM).
|
|
|
