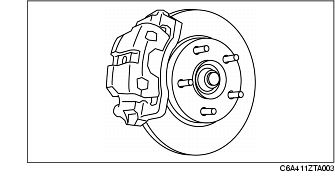

FRONT BRAKE (DISC) CONSTRUCTION

id041100100400

4SD, 5HB, WGN (except Australian specs.)

• Large diameter, ventilated disc type front brakes with a 274 mm {10.8 in} diameter and 24 mm {0.945 in} thickness have been adopted, improving braking force and fade resistance.

WGN (Australian specs.)

• Large diameter, ventilated disc type front brakes with a 283 mm {11.1 in} diameter and a 25 mm {0.984 in} thickness have been adopted, improving braking force and fade resistance.
