ABS (ABS/TCS) HU/CM CONFIGURATION


id041300802600

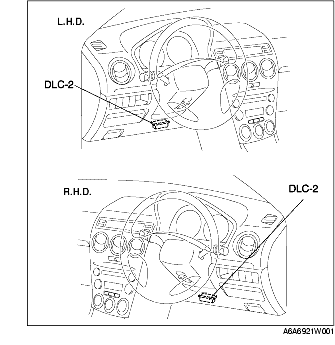

1. Connect the WDS or equivalent to the DLC-2.

2. Input vehicle information following the direction on the WDS or equivalent screen.

3. Select "Module programming".

4. Select "Programmable module installation".

5. Select "ABS/TCS".

6. Retrieve DTCs by the WDS or equivalent, then verify that there is no DTC present.

• If any DTC is present, perform applicable DTC inspection.
