DSC INDICATOR LIGHT OPERATION
id041500102300

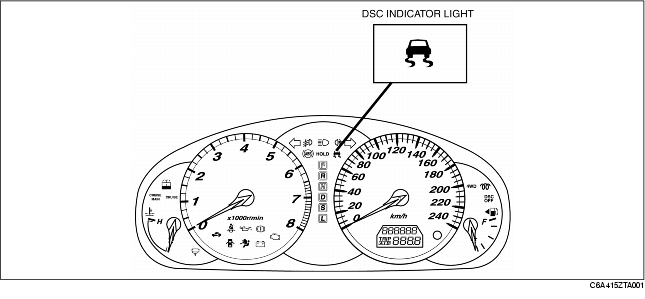

• When the DSC and CAN system is normal, the DSC indicator light illuminates for 2.4 s when the ignition switch is at ON, and goes out, checking the light function. When the system is malfunctioning, the DSC indicator light remains illuminated.
• When DSC and TCS are operating, the DSC indicator light operates as follows:
DSC indicator light operation table
|
Item
|
DSC indicator light
|
|
TCS, DSC non-operation
|
Not illuminated
|
|
TCS operation
|
Flashes (0.5 s intervals)
|
|
DSC operation
|
Flashes (0.5 s intervals)
|
