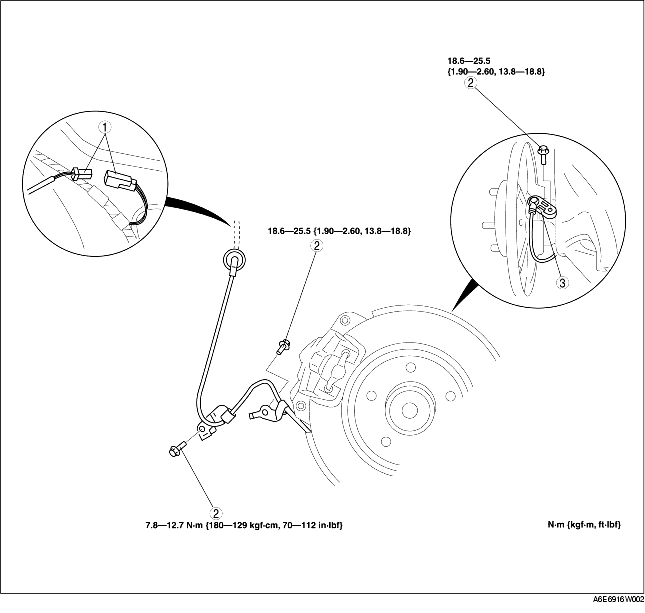

REAR WHEEL-SPEED SENSOR REMOVAL/INSTALLATION


id041500800100

1. Remove the tire house trim.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

1
Connector
2
Bolt
3
Rear wheel-speed sensor
