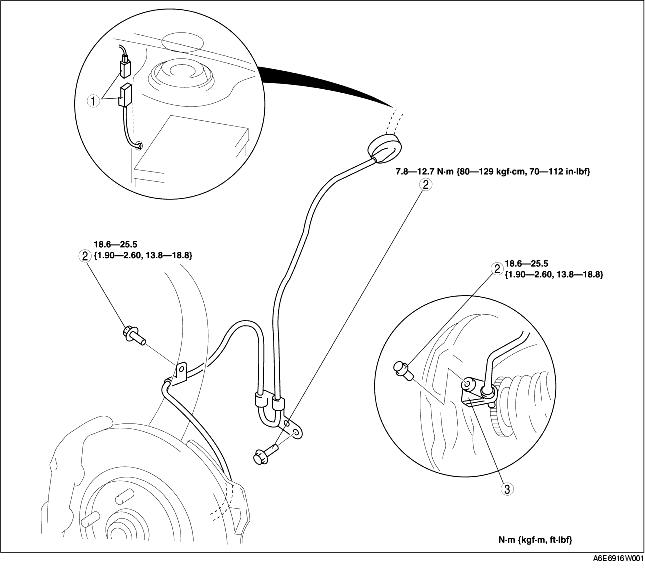

FRONT WHEEL-SPEED SENSOR REMOVAL/INSTALLATION


id041500800300

1. Remove the mud guard.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

1
Connector
2
Bolt
3
Front wheel-speed sensor
