COMBINED SENSOR INSPECTION

Caution

• Be careful and do not allow the lateral-G sensor to fall. If by chance it is subjected to strong impact, replace it.

1. Connect the connector.

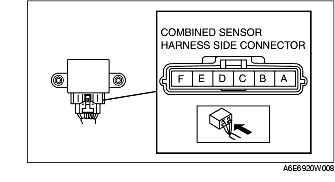

2. Turn ignition switch on, verify the voltage between terminals A and B under the following conditions.

• If not within the specification, replace the combined sensor.

(1) Lateral-G

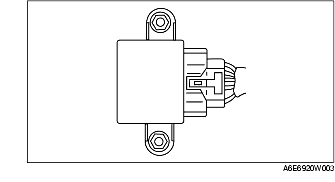

1) Horizontal

Voltage

2.4-2.6 V

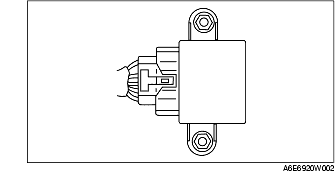

2) Facing up (inclined 90° from horizontal)

Voltage

3.3-3.7 V

3) Facing down (declined 90° from horizontal)

Voltage

1.3-1.7 V

(2) Yaw rate

1) Measure combined sensor voltage under static condition.

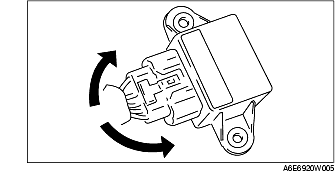

2) Measure voltage at output terminal A and ground terminal B when the combined sensor is rotated left and right.

Caution

• Be careful when turning the combined sensor rotation position while it is in a reversed state because the rotation direction and voltage will be reversed.

Voltage

Right rotation: fluctuation between 2.5-4.62 V

Left rotation: fluctuation between 2.5-0.33 V
