STEERING ANGLE SENSOR REMOVAL/INSTALLATION


id041500801600

1. Remove the combination switch.

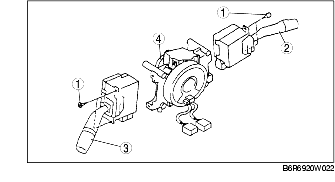

2. Disassemble in the order indicated in the table.

3. Assemble in the reverse order of disassembly.

1
Screw
2
Wiper and washer switch (Light switch)
3
Light switch (Wiper and washer switch)
4
Body (Built-in the steering angle sensor)
