FLYWHEEL INSPECTION

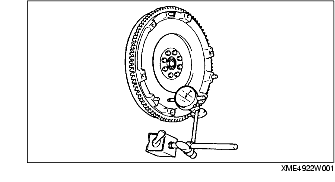

1. Install a dial gauge on the cylinder block.

2. Measure the flywheel runout using a dial indicator.

• If the runout is excessive, replace the flywheel.

Flywheel maximum runout

0.1 mm {0.004 in}
