CLUTCH DISC INSPECTION

1. Using vernier calipers, measure the thickness of the lining at a rivet head on both sides.

• Replace the clutch disc if its thickness is less than the minimum.

Clutch disc minimum thickness

0.3 mm {0.012 in}

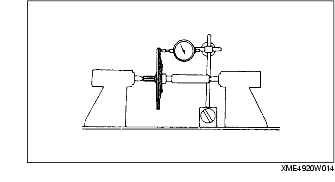

2. Measure the clutch disc runout using a dial indicator.

• If the runout is excessive, replace the clutch disc.

Clutch disc maximum runout

0.7 mm {0.028 in}
