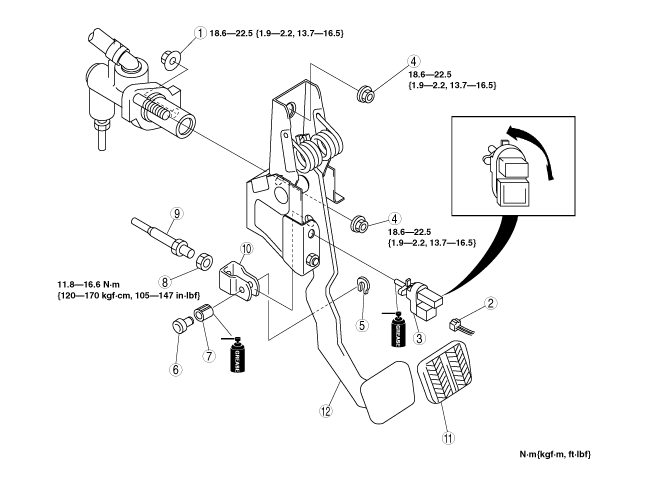

CLUTCH PEDAL REMOVAL/INSTALLATION
id051000801200
1. Remove the battery and battery tray. (L.H.D.)
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
am6zzw00007527
|
|
1
|
Nut
|
|
2
|
Clutch switch connector
|
|
3
|
Clutch switch
|
|
4
|
Nut
|
|
5
|
E-clip
|
|
6
|
Pin
|
|
7
|
Bushing
|
|
8
|
Nut
|
|
9
|
Push rod
|
|
10
|
Clevis
|
|
11
|
Pedal pad
|
|
12
|
Clutch pedal
|
Clutch Switch Installation Note
1. After installing the clutch pedal, adjust/inspect the clutch pedal. (See CLUTCH PEDAL ADJUSTMENT.)
2. Install the clutch switch.
