TRANSAXLE OIL INSPECTION [G35M-R]

1. Park the vehicle on level ground.

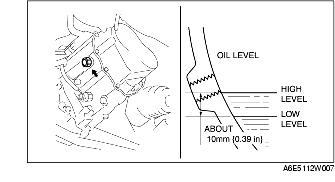

2. Remove the oil level plug and washer.

3. Verify that the oil is near the brim of the plug port.

• If the oil level is lower than the low level, add the specified amount and type of oil through the oil level plug hole.

Manual transaxle oil

Grade: API Service GL-4 or GL-5

Viscosity (all-season): SAE 75W-90

Viscosity (above 10 °C {50 °F}): SAE 80W-90

4. Install a new washer and the oil level plug.

Tightening torque

40-58 N·m {4.0-6.0 kgf·m, 29-43 ft·lbf}
