Component
|
Function
|
|
Forward clutch
|
• Transmits input torque from turbine shaft to front sun gear
• Operates in forward range of first, second, or third gear position
|
|

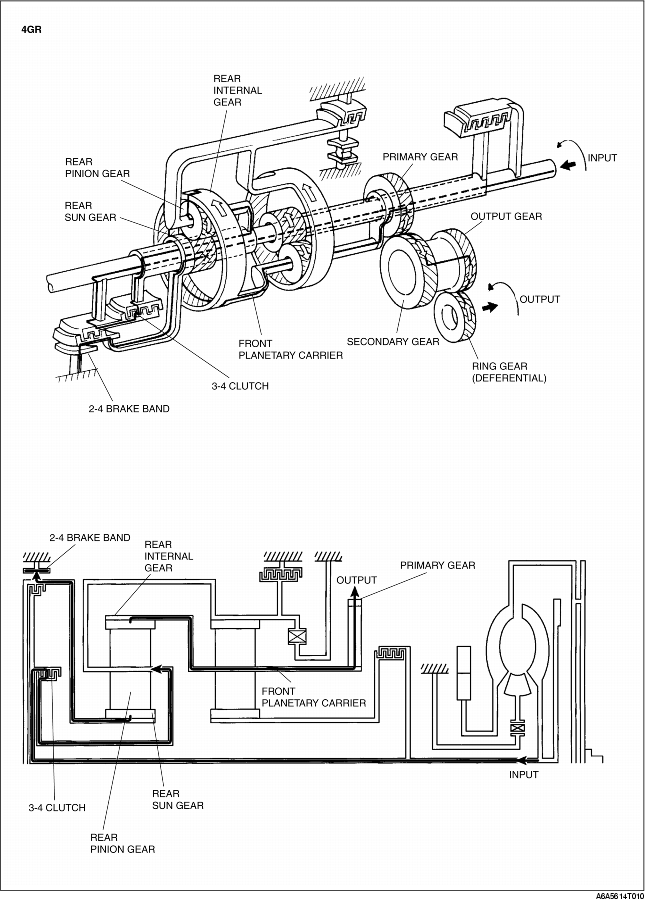

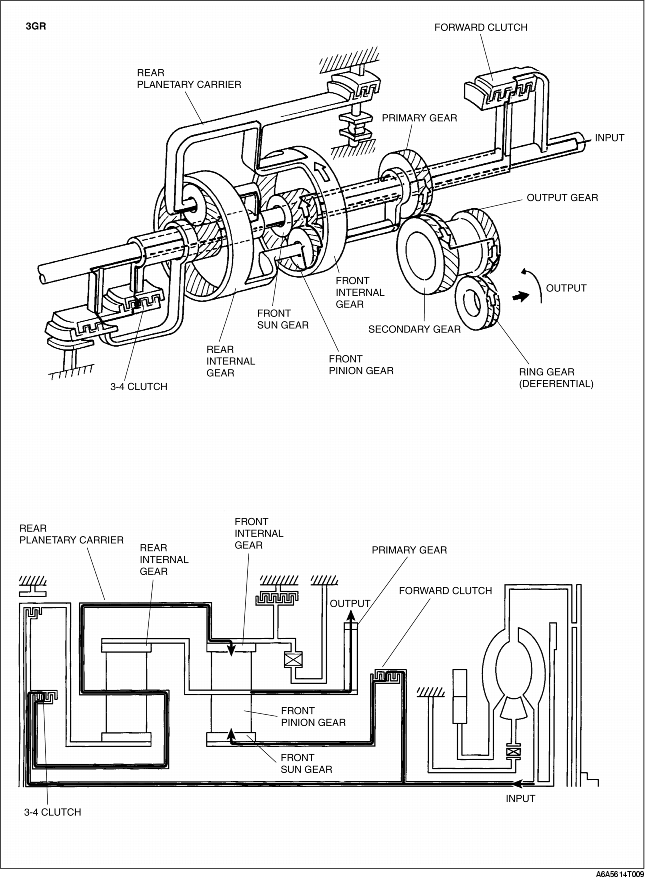

3-4 clutch
|
• Transmits input torque from turbine shaft to rear planetary carrier
• Operates in forward range of third or fourth gear position
|
|

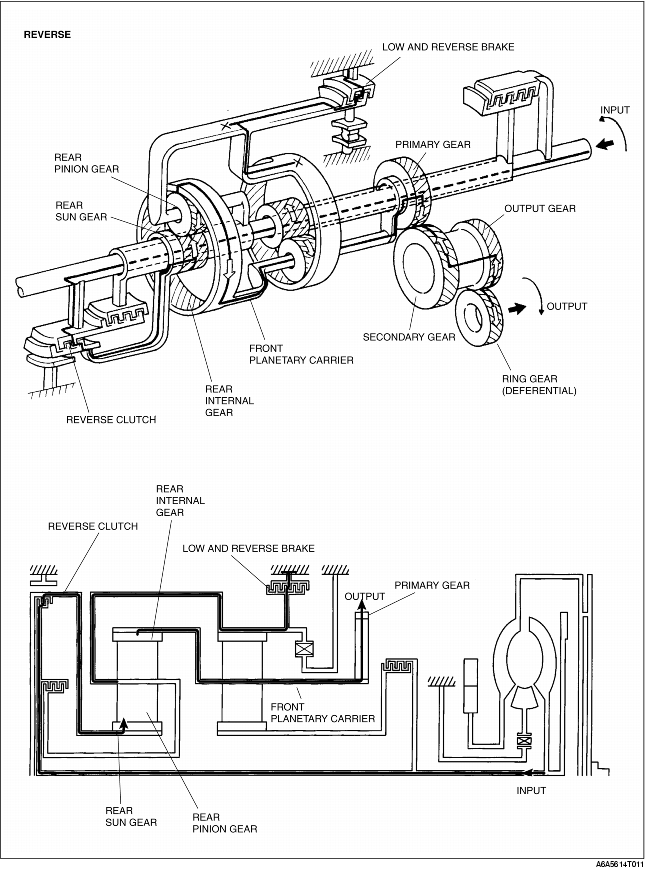

Reverse clutch
|
• Transmits input torque from turbine shaft to rear sun gear
• Operates when vehicle is backing
|
|

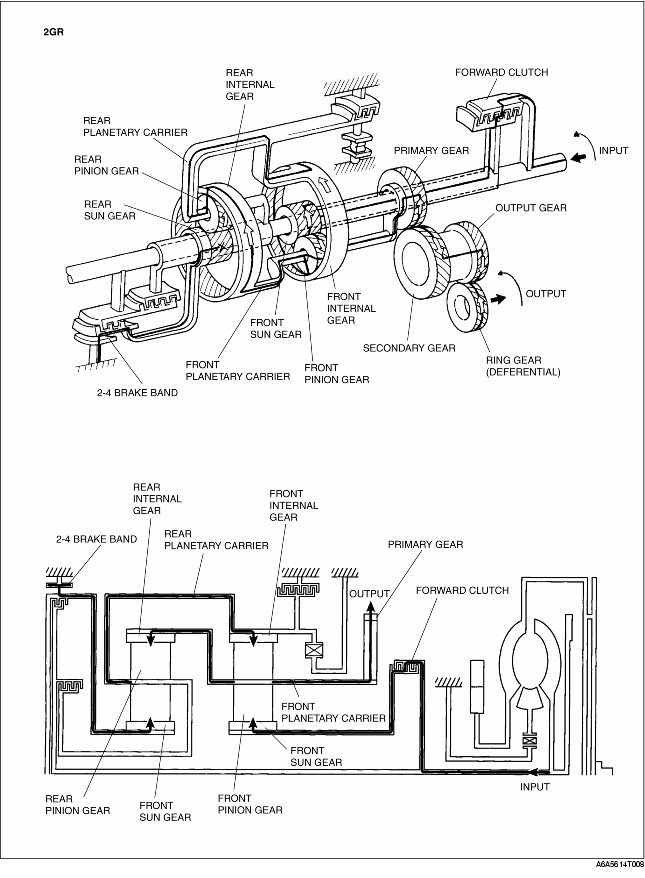

2-4 brake band
|
• Locks rotation of reverse drum, and fixes rear sun gear
• Operates in second or fourth gear position
|
|
Low and reverse brake
|
• Fixes rotation of front internal gear
• Operates when vehicle is backing or in first gear position (L range, HOLD or M range 1GR)
|
|
One-way clutch
|
• Locks counterclockwise rotation of front internal gear in first gear position
|
|
Planetary gear
|
• The planetary gear functions as a transmission due to the engagement/ disengagement of clutches and/or brakes, converts the transmitted driving force of the turbine shaft and transmits it to the output gear.
|
