MANUAL MODE SHIFT CONTROL STRUCTURE [FN4A-EL]

id0517a1108300

Features

• The manual mode shift control is activated by moving the selector lever from the D to M range position (selector lever is shifted over toward front passenger side).

• Manual mode shift control with a manual shifting system allowing selection of gear positions by manual operation of the selector lever forward (-) and back (+) has been adopted. Moreover, engine braking for all gears in manual mode according to the gear ratio is available.

- Shifting between 1GR and 2GR when the vehicle is stopped is possible. Moreover, when shifting from the D to M range while driving, the same gear position is maintained.

- Consecutive shifting in the M range has been adopted. When shifting down from M range 4GR or 3GR, one gear can be skipped over by rapidly tapping the selector lever two times in the down-shift (-) direction.

• Selector lever position and gear position indicator lights, built into the instrument cluster, have been adopted. The gear position indicator light displays the selected gear position.

- The selector indicator light includes a selector lever position indicator that displays selector lever positions and, a gear position indicator light that displays gear positions.

Structure

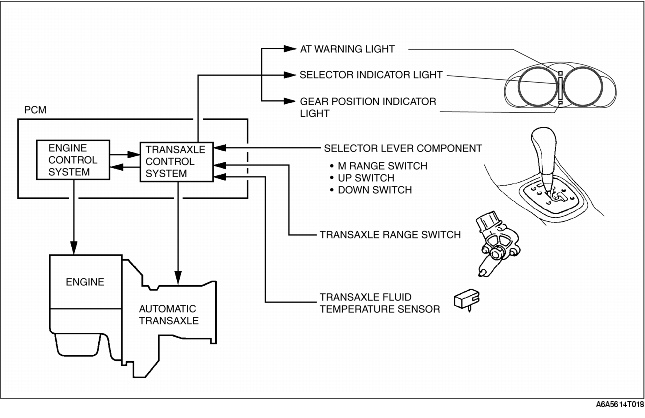

System diagram

Above figure shows except for General (L.H.D.) specs. sport AT
