TCM REMOVAL/INSTALLATION (GENERAL (L.H.D.) SPECS. SPORT at) [FN4A-EL]

id0517a18004b9

1. Disconnect the negative battery cable.

2. Remove in the order indicated in the table.

3. Install in the reverse order of removal.

4. Connect the negative battery cable.

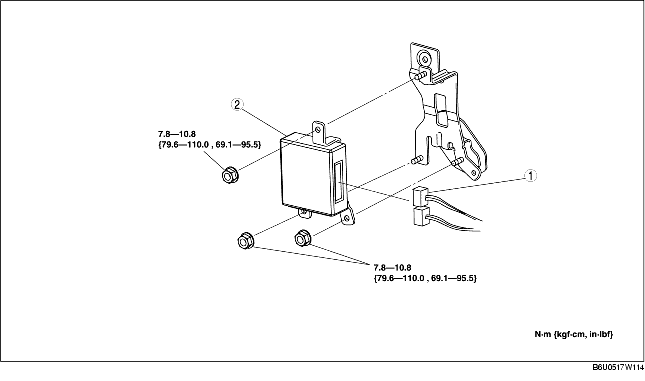

1	TCM connector
2	TCM
