SELECTOR LEVER DISASSEMBLY/ASSEMBLY (SPORT AT)

id0518008009a4

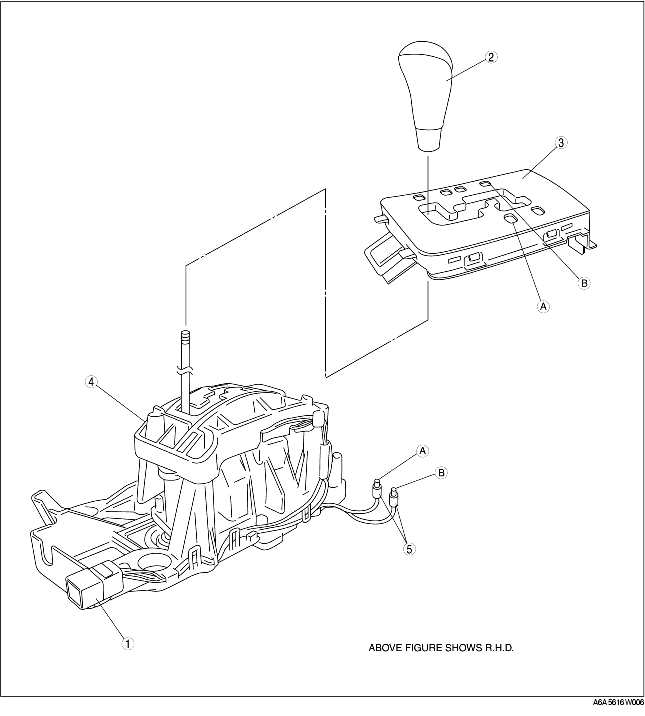

1. Disassemble in the order shown in the figure.

2. Assemble in the reverse order of disassembly.


1	Connector
2	Selector lever knob component
3	Cover
4	Indicator panel
5	Selector illumination light
